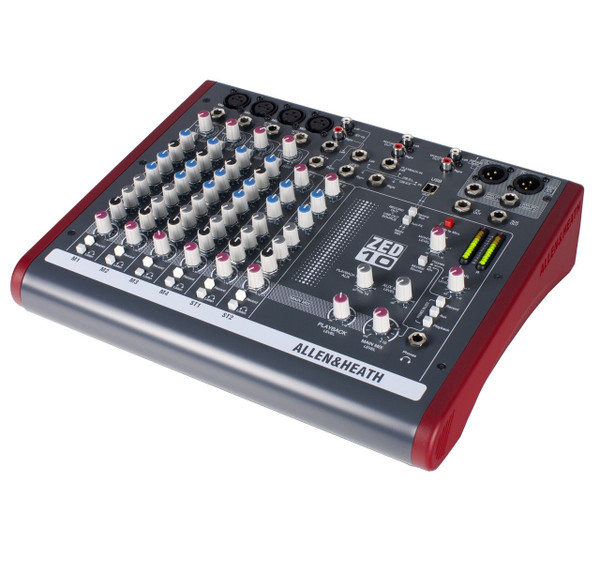

Allen & Heath ZED-10 10-Channel Mixer
Take your show on the road with the ZED-10 Multipurpose Mixer from Allen & Heath. This compact, versatile mixer is easy to fit into any audio setup, and its portability makes it the ideal choice for small band mixing, gigging, or recording live or in a home studio. With optimized connectivity, MusiQ-fitted equalization, built-in guitar DI, and more, the ZED-10 delivers the tools you need to ensure you sound your best. Designed to make your live sound and music production seamless, the ZED-10 comes with configurable USB audio inputs and outputs. No need to install external soundcards—just plug in a USB lead and select USB routing on the mixer to get started right away at your recording. This feature gives you CD-quality audio to and from your Mac or PC, while switches and connections via the mixer’s jack socket terminals offer a variety of send/return options.
The ZED-10 comes with a responsive 3-band, swept mid-frequency EQ design at uses MusiQ. Its optimized slope (Q factor) allows you to precision-equalize individual instruments in your band.
Guitarists can dispense with the extra DI box and plug their instrument directly into the ZED-10 using its designated high-impedance inputs (inputs 3 and 4) that are compatible with normal line levels or the low-level inputs from guitar pickups. The resulting sound replicates classic guitar or instrument tube preamps. Use the gain “Boost” switch for instruments with very low-level outputs.
Rounding out the ZED-10’s connectivity options are 2 stereo inputs for MP3/CD players or keyboards, as well as professional XLR stereo outputs and a versatile monitoring section that lets you plug in a headphone and/or speakers to listen to your sound however you prefer.
Allen & Heath ZED-10 Features
- 4 mic/line inputs, 2 with Class A FET high impedance inputs
- Neutrik mic XLR
- Neutrik ¼ inch jacks
- 3 band EQ with MusiQ
- 2 auxes
- Sound image pan
- Illuminated PFL indicator
- Stereo returns & playback
- All inputs with level control
- 12 bar meters
- Responsive 3-band, swept mid EQ with MusiQ
- 2 stereo sources with MP3 player compatibility
- Separate 2-track record outputs
- Stereo playback input for 2-track replay
- XLR main stereo outputs with inserts
- Comprehensive monitoring
- Configurable USB stereo audio in/out
- Stereo monitor outs
- 48V microphone phantom power
- DI level switching for sub mixing
