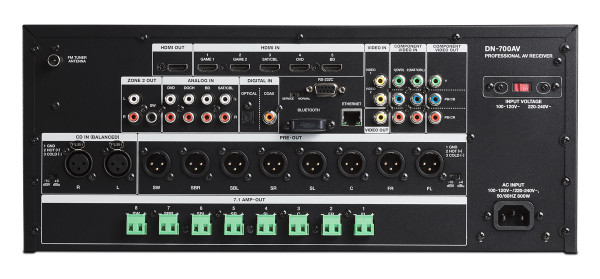

The Denon DN-700AV is a professional 7.1 AV receiver.

With comprehensive in/out connections and the latest Bluetooth 4.0 wireless technology, the DN-700AV is the ideal centerpiece for any commercial audio-video system. Featuring six HDMI inputs, component/composite ins/outs, XLR balanced 7.1 pre-outs and RS-232C and IP control, the 700AV is uniquely capable of handling virtually any installation requirement.

The unit is compatible with many of today's multi-channel formats, including TrueHD/Dolby Digital Plus/Dolby Digital/ DTS-HD/MasterAudio/DTS ES. Plus, it’s HDCP-compatible and has network streaming via DLNA. A powerful 75-watt x 7 amplifier with high-current design drives even low-efficiency speakers to loud levels.

The DN-700AV was designed with the contractor in mind, combining a rackmount chassis, Euroblock amplifier outputs and balanced, XLR preamplifier outputs. A balanced XLR stereo input rounds off the feature set aimed at the professional installer.

Denon DN-700AV Includes:

• DN-700AV
• Power Cable
• FM Antenna
• Remote Control
• Euroblock Connectors
• User Guide
• Safety and Warranty Manual

Denon DN-700AV Features:

• Six HDMI version 2.0 inputs and one output
• Component & composite video inputs and outputs
• Dolby TrueHD / Dolby Digital Plus / Dolby Digital/DTS-HD Master Audio/ DTS ES
• XLR balanced 7.1 preamp outputs
• Euroblock 7.1 amplified outputs (75W per channel)
• Bluetooth 4.0
• FM tuner with 20-channel memory
• RS-232C and IP control
• HDCP compatible and network streaming via DLNA 3.0

Denon DN-700AV Specifications:

• Audio Specification
  • Preamp Outpust: 7.1 surround
  • Level: -10 dBv or +4 dBu
  • Amplified Outputs: 7.1 surround
  • Output Power Per Channel: 75W/ch
  • Frequency Response: 10 kHz – 100 kHz, +/-1.0 dB
  • Dynamic Range: 10 kHz – 100 kHz, A-weighted, >90 dB
  • Signal-to-Noise: 1 kHz, 0 dB, A-weighted, >90 dB
  • Distortion: <0.006%
  • T.H.D: 1 kHz, 0 dB, A-weighted, <0.01%
• Supported Surround Formats: Dolby TrueHD, DolbyDigital Plus, Dolby Digital, DTS-HD Master Audio, DTS ES
• Supported File Types: WMA, MP3, WAV, MPEG-4 AAC, andFLAC files
• Bluetooth Specification
  • Version: 4.0
  • Profile: A2DP, AVRCP
  • Range: Up to 50ft (15m)
• FM Tuner
  • Frequency Range: 87.5 MHz – 108 MHz
• USB Connectivity
  • File System: FAT 16/32
  • Media Type: USB Flash Drive
• Analog Audio Input
  • Unbalanced RCA: Nominal Level: -10 dBV (at full scale: -16 dB)
  • Minimum Input Level: -19 dBv or higher
  • Input Impedance: 47 KOhm +/- 10%, Unbalanced
• Digital Audio Inputs
  • Coaxial: RCA (IEC-60958 Type II)
  • Optical: Toslink IEC-60958 Type II)
• HDMI: Version 1.4 (3D and ARC supported)
• General
  • Input Voltage: 100–240 V, 50/60 Hz
  • Fuse: T10AL 250V
  • Consumption: <20W
  • Operating Temperature: 41 °F to 113 °F
  • Operating Humidity: 25–85%, non-condensing
  • Dimensions (WDH) 19.00 x 13.66 x 6.93” (483 x 347 x 176mm)
  • Weight: 32.4 lbs (14.7kg)
