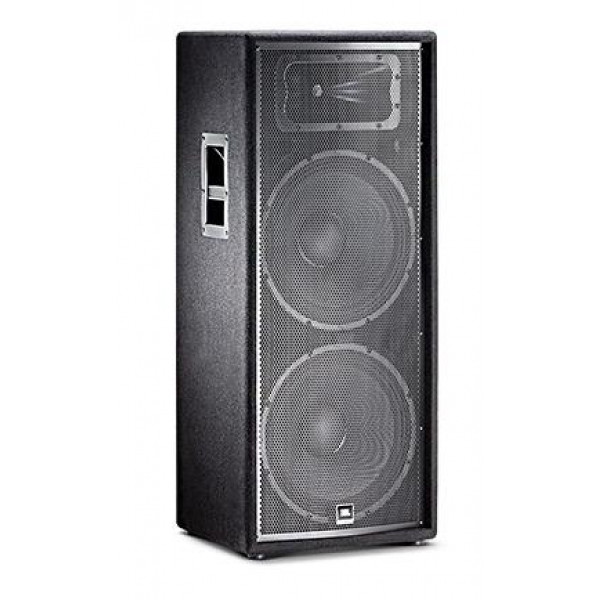

JBL JRX225 Dual 15" Sound Reinforcement Loudspeaker

  1. Home
  2. › JBL Store
$569.00
  • Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
  • JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
  • The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
  • A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
  • Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
  • Non-resonant, all-steel handles are used.
  • Attractive 18-gauge perforated, steel grille protects components from damage.

    The JRX225 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback.

    Power Rating : 500 W / 2000 W

    Frequency Range (-10 dB) : 36 Hz - 19 kHz

    Frequency Response (±3 dB) : 45 Hz - 16 kHz

    Sensitivity (@1m) : 100 dB SPL
    (1w/1m)

    Nominal Impedance : 4 ohms

    Recommended Amplifier Power : 500 W to 1000 W into 4 ohms

    Maximum SPL : 133 dB

    Nominal Dispersion : 90° x 50°

    Crossover Frequency : 2 kHz

    Dimensions
    (H x W x D) : 1092 mm x 464 mm x 426 mm
    (43 in x 18.3 in x 16.8 in)

    Weight : 42.6 kg (94 lb)

    High Frequency Driver : JBL 2414H-C 25mm (1 in) polymer diaphragm compression driver mounted on Progressive Transition™ Waveguide

    Low Frequency Driver : JBL M128 x 2

    Input Connectors : Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
