The QSC E Series is a range of passive loudspeakers intended for sound reinforcement in entertainment applications. These loudspeakers will perform nicely with any quality, professional power amplifier - but by taking advantage of the complete QSC entertainment system, greater overall performance and options are available.

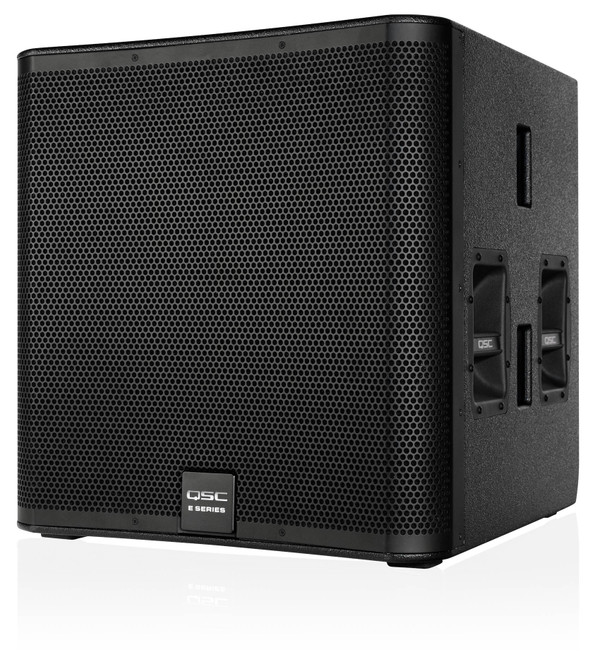

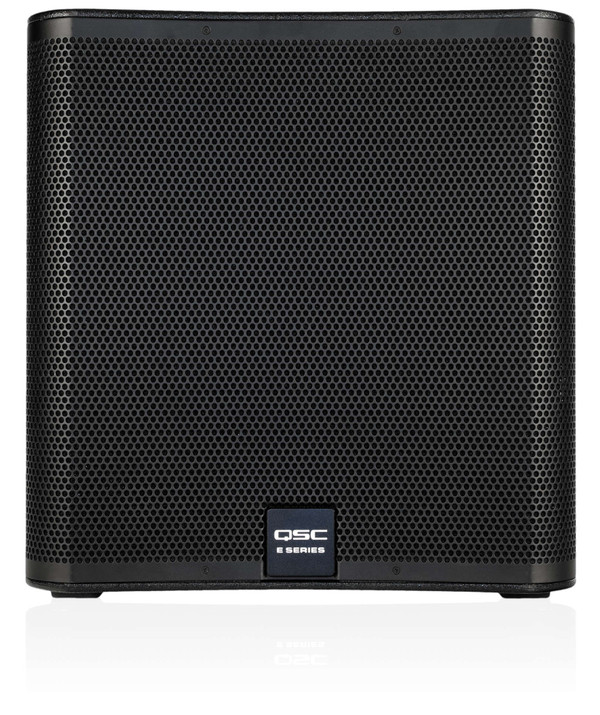

The E118sw is a high-performance direct radiation subwoofer with a single, 800W, 18", aluminum frame woofer. It's designed to produce crushing low-end for live performance with kick-drum and bass in the PA or for high-level, high-energy dance music. For ease of transport, this subwoofer offers improved metal handles and larger bolt spacing for 4" caster kit (sold separately). A threaded M20 pole socket is provided for sub/satellite use with any of the E Series two-way models.

Applications

• Live performance
• DJ
• Dance music
• Karaoke
• Production

Features

• High power capacity, 800W (continuous), 3200W (peak)
• E Series Entertainment System - Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
• Rugged tour-grade textured paint
• Foam-lined perforated steel grill
• 36" Speaker pole included
• Improved metal handles for transport

Specifications

• Configuration: 18" non-powered subwoofer
• Frequency Response (-6 dB): 37 Hz - 230 Hz
• Frequency Range (-10 dB): 32 Hz - 230 Hz
• Power Capacity: 800W continuous / 3200W peak
• Sensitivity: 98 dB, 1W @ 1 m
• Output: 133 dB (peak SPL @ 1 m)
• Driver: 18" LF driver with 4" voice coil
• Nominal Impedance: 4 Ω
• Cross-over: Recommended 80 - 120 Hz LPF

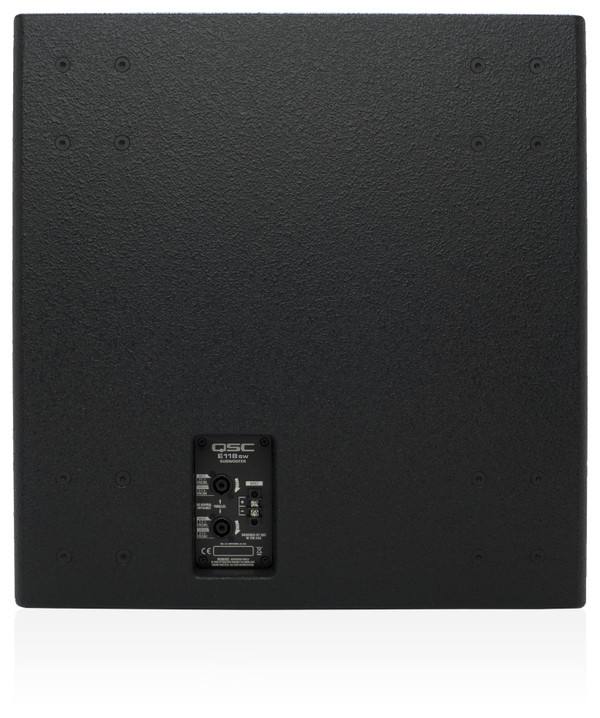

• Input Connectors: (2) NL4, (1) barrier strip
• Mounting and Suspension: M20 threaded pole-mount socket
• Dimensions (W x H x D): 23.2" x 24.2" x 23.8" (590 x 616 x 605 mm)
• Net Weight: 95 lbs. (43 kg)
• Shipping weight: 106 lbs. (48 kg)
