$379.00
  • Headworn mic system for performers and presenters
  • Includes a bodypack, a receiver, a headset mic, and accessories
  • Simple setup and intuitive interface
  • 2 AA batteries (included) provide up to 14 hours of continuous use
  • 300 feet (91 m) operating range (line of sight)

    and fitness instructors, Shure’s BLX14/PGA31 Wireless Headworn Microphone System is unobtrusive and easy to use.

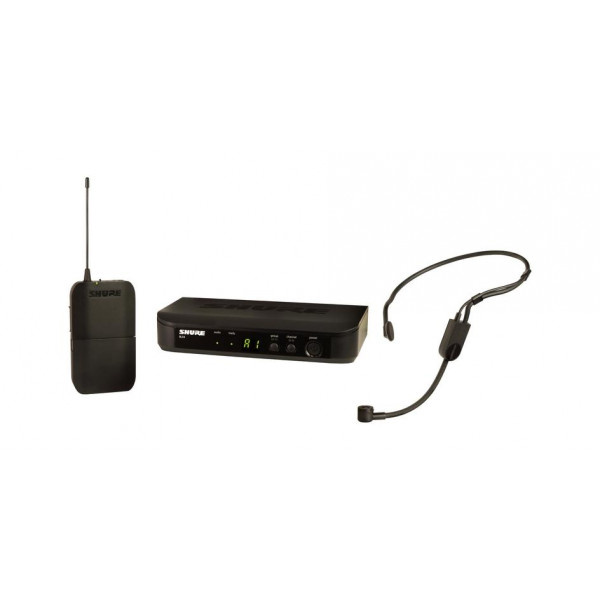

    This system is comprised of a BLX1 Bodypack Transmitter, a BLX4 Receiver, and a PGA31 Headset microphone, as well as a power supply, windscreen, and clothing clip.

    • System
      • Working Range: 91 m (300 ft) Line of Sight
      • Audio Frequency Response: 50 to 15,000 Hz
      • Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone: 0.5%, typical
      • Dynamic Range: 100 dB, A-weighted, typical
      • Operating Temperature: -18°C (0°F) to 57°C (135°F)
      • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
    • BLX1 Transmitter
      • Audio Input Level
        • max: -16 dBVmaximum
        • min (0 dB): +10 dBVmaximum
      • Gain Adjustment Range: 26 dB
      • Input Impedance: 1 MΩ
      • RF Transmitter Output: 10 mW, typical
      • Dimensions (HxWxD): 4.33x2.52x0.83" (110x64x21mm)
      • Weight: 2.6 oz. (75 g), without batteries
      • Housing: Molded ABS
      • Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
      • Battery Life: up to 14 hours (alkaline)
    • BLX4 Receiver
      • Output Impedance
        • XLR connector: 200 Ω
        • 6.35 mm (1/4") connector: 50 Ω
      • Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone
        • XLR connector: –27 dBV (into 100 kΩ load)
        • 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
      • RF Sensitivity: -105 dBm for 12 dB SINAD, typical
      • Image Rejection: >50 dB, typical
      • Dimensions (HxWxD): 1.57x7.4x4.06" (40x188x103mm)
      • Weight: 8.5 oz. (241g)
      • Housing: Molded ABS
      • Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
Current Stock:
SKU:
BLX14-PGA31
Condition
New
Weight:
4.00 LBS
Width:
12.00 (in)
Height:
18.00 (in)
Depth:
3.00 (in)
