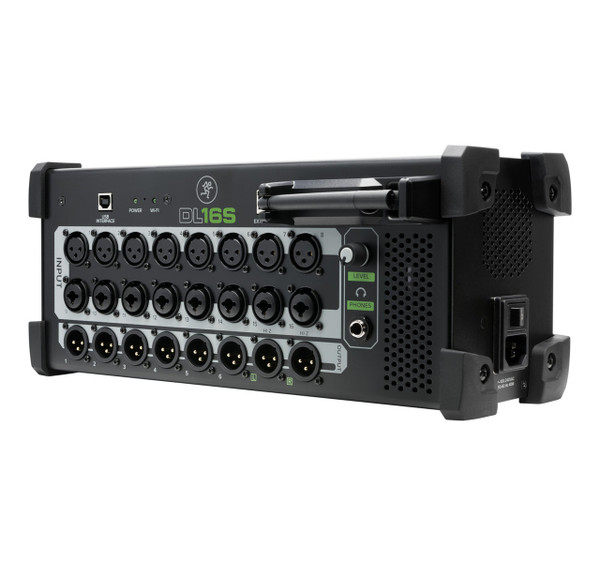

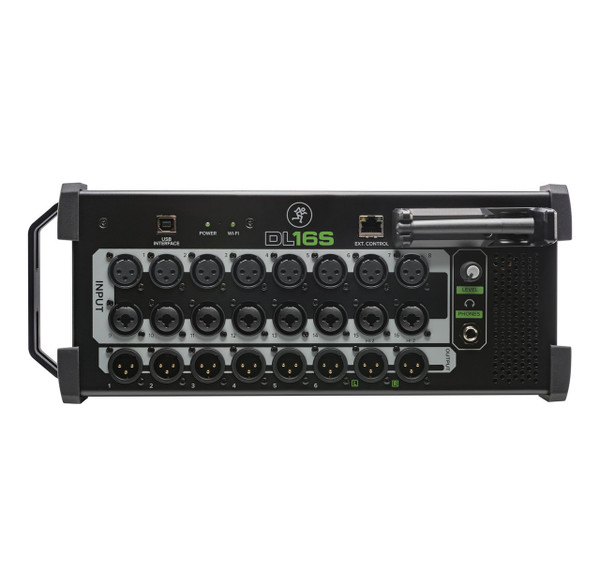

The DL16S brings all the powerful DSP, renowned Onyx+ mic preamps, and Built-Like-A-Tank reliability that the DL Series is known for, in an all-new stagebox form factor with built-in WiFi. Mount it in a rack, set it on a desk, or put it right on the stage.

The Mackie DL16S wireless digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in an all-new Built-Like-A-Tank™, stage-friendly design made to withstand real-world abuse. Get mixing quickly with built-in Wi-Fi and the industry-leading, multi-platform Master Fader™ app. Create stunning multi-track recordings and get playback for a virtual soundcheck via USB I/O. Loaded with channel/output DSP plus 4 FX processors, the DL16S gives you the mixing power you need for your best mix ever.

Mackie DL16S Features

• 16 Onyx+™ recallable mic preamps
• 8 fully-assignable XLR outputs plus a headphone output
• Industry-leading Master Fader control app
• 16x16 USB recording
• Ditch the snake – Place it anywhere on stage or in a rack
• Complete control via iOS, Android™, macOS®, or Windows® devices
• No set FOH position – mix from anywhere
• Supports up to 20 separate devices at once
• Multiple engineers can work from a single mixer
• 16x16 USB 2.0 audio interface for Mac or PC
• Record the show for later mixdown
• Play intermission music, backing tracks and more directly into a dedicated stereo return channel
• Perform a virtual sound check
• Amazing low-cost, high channel count studio recording solution
• Utilize Mac or PC audio plug-ins in a live environment



• • Sample Rate48kHz
  • A/D/A Bit Depth24-bit
  • System Latency1.5ms
  • 0 dBFS Reference+22 dBu
  • Frequency Response
    • XLR inputs and outputs: ±0, -1 dB, 20Hz to 20kHz
    • 1/4" inputs: ±0, -3 dB, 20Hz to 20kHz
  • THD+N<0.005%
  • EIN (150Ω termination)-127 dBu, A-weighted
  • Crosstalk
    • Analog XLR adjacent inputs: <-105dB @ 1kHz unity gain, <-65 dB @ 1kHz max gain
    • Analog XLR adjacent outputs: <-95dB @ 1kHz
  • Signal to Noise Ratio>92 dB unweighted
  • Output Noise, XLR Output<-90dBu RMS
  • Dynamic Range
    • Mic Input > Main Bus > XLR Output, unity gain: >110dB, A-weighted
    • XLR Mic Input to USB Output: >113dB, A-weighted
    • XLR Output from DSP (Oscillator): >113dB, A-weighted
  • CMRR-XLR Mic Input>75 dB @ 1kHz
  • XLR Mic PreOnyx+
  • Input Impedance
    • XLR Channels 1-16: 3kΩ, balanced
    • 1/4" Line, Channels 9-14: 30kΩ, balanced
    • 1/4" Hi-Z, Channels 15-16: 1MΩ, unbalanced
  • Max. Input Level+22 dBu (XLR), +30 dBu (1/4")
  • Output Impedance300Ω
  • Max. Output Level+22dBu
  • Headphone Out
    • Connector: 1/4" TRS stereo
    • Max. Output Level: +20dBu (into 600Ω each channel), +22dBu (into 100kΩ each channel)
  • USB
    • Connection: USB 2.0 High speed (as a device)
    • Connector: USB-B
    • Supported MS Windows with driver installation: Windows 10
    • Supported Mac OS: macOS 10.13, 10.14
    • Audio: 16 in/16 out, 48kHz, 16/24-bit
  • Dimensions (HxWxD)5.6" x 14.1" x 5.8"
  • Weight6.2 pounds
