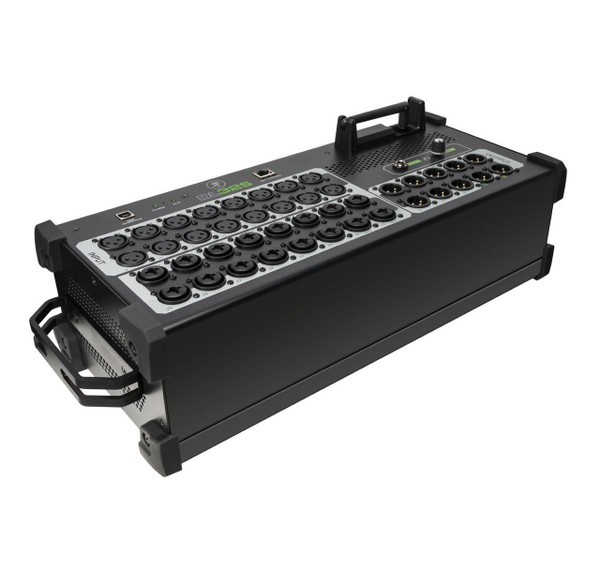

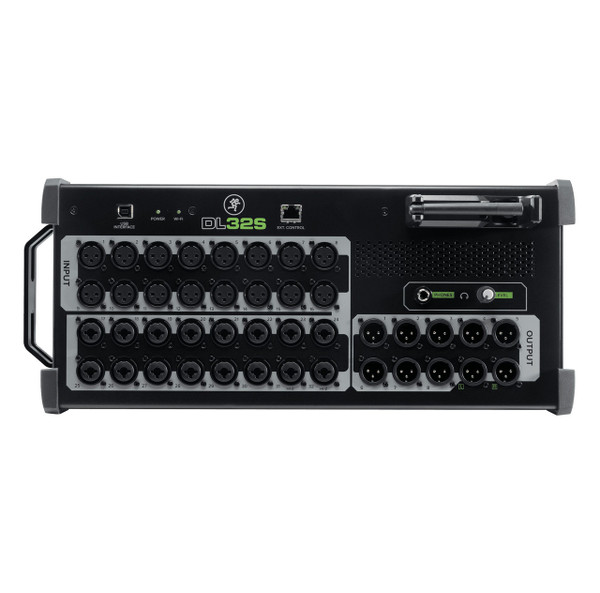

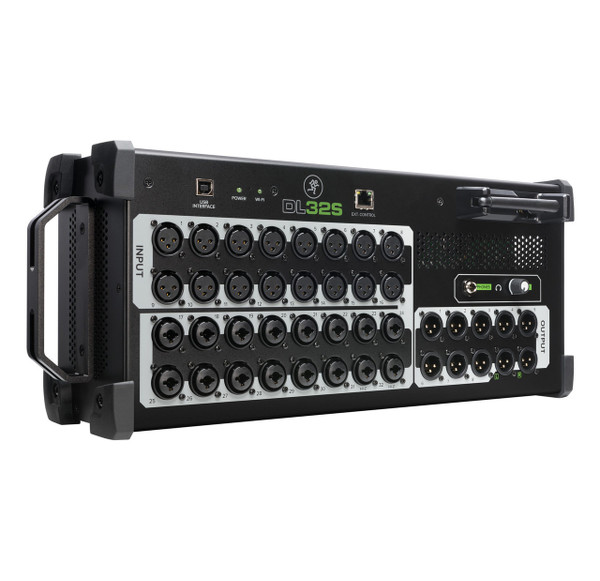

The DL32S brings all the powerful DSP, renowned Onyx+ mic preamps, and Built-Like-A-Tank reliability that the DL Series is known for, in an all-new stagebox form factor with built-in WiFi. Mount it in a rack, set it on a desk, or put it right on the stage.

The Mackie DL32S wireless digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in an all-new Built-Like-A-Tank™, stage-friendly design made to withstand real-world abuse. Get mixing quickly with built-in Wi-Fi and the industry-leading, multi-platform Master Fader™ app. Create stunning multi-track recordings and get playback for a virtual soundcheck via USB I/O. Loaded with channel/output DSP plus 4 FX processors, the DL32S gives you the mixing power you need for your best mix ever.

Mackie DL32S Features

• 32 Onyx+™ recallable mic preamps
• 10 fully-assignable XLR outputs plus a headphone output
• Industry-leading Master Fader control app
• 32x32 USB recording
• Ditch the snake – Place it anywhere on stage or in a rack
• Complete control via iOS, Android™, macOS®, or Windows® devices
• No set FOH position – mix from anywhere
• Supports up to 20 separate devices at once
• Multiple engineers can work from a single mixer
• 32x32 USB 2.0 audio interface for Mac or PC
• Record the show for later mixdown
• Play intermission music, backing tracks and more directly into a dedicated stereo return channel
• Perform a virtual sound check
• Amazing low-cost, high channel count studio recording solution
• Utilize Mac or PC audio plug-ins in a live environment


  • Analog Inputs32
  • Analog Outputs10
  • FX Processors4
  • USB I/O32x32
  • Sample Rate48kHz
  • A/D/A Bit Depth24-bit
  • System Latency1.5 ms (Analog Inputs > Main Bus > Analog Output)
  • 0 dBFS Reference+22 dBu
  • Frequency Response
    • XLR inputs and outputs: ±0, -1 dB, 20 Hz to 20 kHz
    • 1/4" inputs: ±0, -3 dB, 20 Hz to 20 kHz
  • EIN (150Ω termination)-127 dBu, A-weighted
  • Dynamic Range
    • Mic Input > Main Bus > XLR Output, unity gain: >110 dB, A-weighted
    • XLR Mic Input to USB Output: >113 dB, A-weighted
    • XLR Output from DSP (oscillator): >113 dB, A-weighted
  • Dimensions (HxWxD)7.3" x 17.6" x 5.8"
  • Rack Space4U rack spaces
  • Weight8.8 pounds (4 kg)
