A complete package consisting of a PTZ camera, controller, and streaming recorder, the PT20X-JOY-MONARCH-HD gives you everything you need to hit the ground running

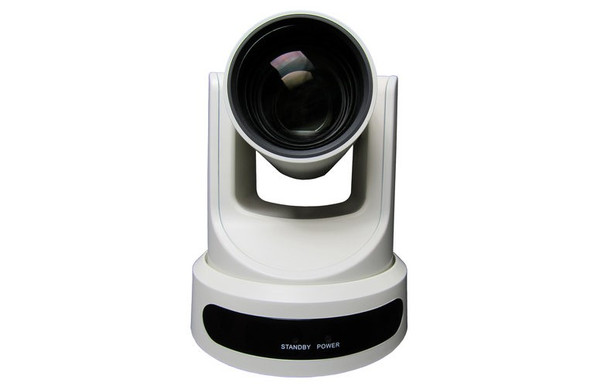

The PT20X-USB-G2 from PTZOptics offers a 1080p camera with 20X optical zoom for capturing both wide angles and long shots. Available in white, this plug and play USB 3.0 camera model is built with ease of use and compatibility in mind. The PT20X features game changing optics and options for video communication installations. Support for USB 3.0, HDMI, and IP streaming (H.264, H.265, & MJPEG), makes these cameras ideal for broadcasting high definition video signals, recording, or video conferencing applications.

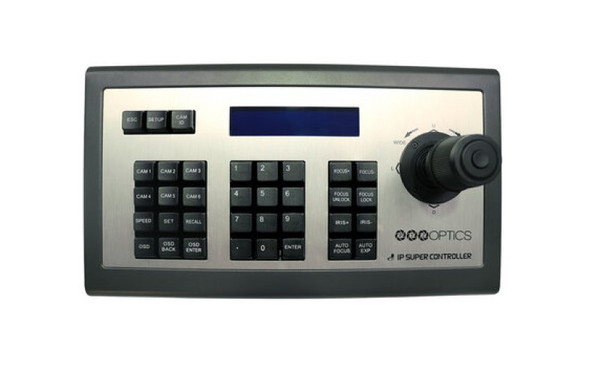

The 3rd generation PT-JOY-G3 has been re-designed based on extensive customer feedback to give you exactly what you want in a controller, including advanced PTZ speed controls, access to the on screen display menu, focus lock, and much more. Driven by the SONY VISCA Over IP Procotol, the PT-JOY is ready for any professional video application. Equipped with six camera switching hotkeys and access to the finest camera detail settings over IP, PTZOptics has made PTZ camera control easy enough for volunteers, and advanced enough for broadcast professionals. Take control of cameras all across your network with a single Ethernet cable connection. The PT-JOY-G3 is the perfect partner for your PT20X.

You'll want to stream, edit, and archive your content, so we've included the Matrox Monarch HD in this impressive package. A small, easy-to-use video streaming and recording appliance designed for professional video producers. The Monarch HD is designed to simultaneously stream a live event and record a master quality version for post-event editing. By separating the task of recording from streaming in a single integrated unit, Matrox Monarch HD ensures that the Content Delivery Networks (CDNs) are focused on delivering quality video to your audience, while you control the quality of the archive.

From any HDMI input source like the PT20X camera or a switcher, Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD can be remotely controlled using any computer or mobile device with a web browser.

PTZOptics PT20X-JOY-MONARCH-HD Includes:

• PT20X-USB-G2
• 20X Zoom USB 3.0 Camera
• AC Power Adaptor
• Power Cord
• USB 3.0 Cable
• RS232 Cable
• IR Remote Controller
• User Manual
• Monarch HD
• Matrox Monarch HD device
• Matrox Monarch HD external power supply
• IEC-C8 power cords (US, GB and EU)

PTZOptics PT20X-JOY-MONARCH-HD Features:

• PT20X-USB-G2
• 60.7 degree wide-angle lens.
• High performance in low light scenarios with Wide Dynamic Range.
• Full 1920x1080p HD Resolutions up to 60 frames per second.
• 2D and 3D noise reduction with PTZOptics latest “low noise CMOS sensor”.
• UVC 1.5 (USB), RS232 & RS485 (Serial), and IP (LAN/WAN) control
• H.264, H.265, & MJPEG Streaming over RJ-45 LAN port
• HDMI, USB 3.0, & IP streaming (all 3 simultaneously)
• RTMP & RTSP IP streaming
• PT-JOY-G3
• Latency = Eliminated
• Easy Operation
• Broadcast Quality Made Affordable
• Single Cable Simplicity
• The 3rd generation IP Joystick includes PoE (Power Over Ethernet)
• Monarch HD
• Record Master Quality Video While Streaming
• Ready to Edit and Upload with MP4 and MOV
• Connect with HDMI
• Robust and Practical Design
• Easily Reach your Audience
• Record to USB key, SD card, system, external, or network drive
• Presets and Profiles for simple Configuration
• Integrate with Crestron
• Rackmountable

PTZOptics PT20X-JOY-MONARCH-HD Specifications:

• PT20X-USB-G2
• Camera & Lens:
• Video Sensor 1/2.7” CMOS, 2.12 Mega Pixels
• Frame Rates 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25
• Frame Rates (CVBS) 576i/30, 480i/30
• Focal Length: 20x, F4.42mm-88.5mm, F1.8-F2.8
• Lens: Zoom 20x
• Field of View 60.7°
• Min Lux: 0.5 Lux at F1.8, AGC ON
• Shutter Speed: 1/30s -1/10000s
• SNR: >/= 55dB
• Vertical Flip & Mirror: Supported
• Horizontal Angle of View: 3.36° (tele) to 60.7° (wide)
• Vertical Angle of View: 1.89° (tele) to 34.1°(wide) Physical
• Working Environment: Indoor
• Pan & Tilt Movement:
• Pan Movement: ±170°
• Tilt Rotation:
• Up: 90°
• Down: 30°
• Presets: 10 via IR (255 via Serial or IP)
• Rear Board:
• Video Output: HDMI, USB 3.0, IP Streaming, CVBS
• Network Interface: RJ45
• Audio Interface: Line In, 3.5mm (USB & IP Stream Only)
• Communication: RS-232, RS485, PELCO-D/P, UVC 1.5
• Baud Rate: 2400/4800/9600 bits
• Power Supply: JEITA type Power Adapter (DC IN 12V)
• USB 3.0 Interface: USB 3.0 (Requires Quad Core Processor)
• USB 2.0 Interface: Future Use
• Power Supply: 12W (Max)
• Input Voltage 12V DC (10.8 -13.0V DC)
• Dimension (in.): 5.6 W x 6.5 H x 6.7 D (7.8 H max w/ Tilt)
• Dimensions (mm): 142 W x 164 H x 169 D (198 H max w/ Tilt)
• Box Dimensions: 9” x 9” x 10” (229mm x 254mm x 229mm)
• Camera Weight: 3.10 lbs. (1.41 kg)
• Boxed Weight: 5.4 lbs. (2.45 kg)
• NOTE: This is an FCC Class A Digital device. As such, unintentional electromagnetic radiation may affect the image quality of TV in a home environment.
• Matrox HD
• HDMI Progressive Video Input:
• 1920x1080 @ 60/59.94/50/24/23.98 Frames per second
• 1280x720@ 60/59.94/50 Frames per second
• HDMI Interlaced Video Input: 1920x1080i 29.97/25 frames per second
• HDMI Video Input Format is Auto-Detected
• HDMI Video Output: Pass-through of video input signal. 1 Frame delay from input to output
• Audio Input
• Processes first two channels of audio embedded in HDMI input signal
• Unbalanced analog stereo input via 1/8” (3.5mm) jack
• Line Level
• Audio Output:
• Pass through of all embedded audio channels in HDMI signal
• Unbalanced analog stereo output via 1/8” (3.5mm) jack– passthrough of input
• Line Level
• H.264/MPEG-4 Part 10 (AVC) Video Encoder
• Resolutions: Selectable encoding resolutions ranging from: 96x96 to 1920x1080
• Bit Rates Ranges: 100 kbps to 30 Mbps - for recording, 100 kbps to 20 Mbps- for streaming (When both streaming and recording resolutions are above 1280 x 720, the encode parameters must be identical for both processes. Independent record and streaming settings are available when either the streaming or the recording resolution is 1280 x 720 or below.)
• Encode Frame Rates: Encode frame rates representing 1:1, 1/2 and 1/4 of the input frames rates are supported.(When the maximum encoded frame rate is 30fps when input resolution is 1920x1080.)
• Encoding Profiles: Baseline, Main and High
• Encoding Controls: 2.0, 3.0, 3.1, 4.0, 4.1 Level Support; IBP GOP size and structure; Variable bite rate support; Deblocking Filter
• MPEG-4 AAC Audio Encoder
• Standard: AAC-LC
• Sample Frequency: 44.1 and 48 kHz when digitized from analog source
• Channels: 2 channels Stereo (L/R)
• Bit Rates: Range from 96 kbps to 256 kbps
• Scaler
• High Quality multi-tap 10 bit Scaler and De-Interlacer
• Available to both streaming and recording operations
• Recording File Format
• File Type: Industry Standard MP4 and MOV files with two channels of embedded AAC audio.
• Recording Lengths: Maximum file length of 300 minutes - irrespective of storage type used. File splitting feature allows a user to record continuously for long periods by defining file segment sizes. The Monarch HD will create these sequential file segments over the course of the recording operation without losing a single frame of video. File segment can have a length of 1 to 300 minutes.
• Network Interfaces
• Connector: RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing
• Protocols: RTMP, RTSP/RTP; IPv4 Support; Unicast and Multi Unicast
• User Interface
• Computer Based control: HTTP via standard PC or Mac Web browser
• Physical Interface: On Device push buttons for independent streaming and recording Start/Stop control
• Storage Types for File Recording
• 2 x USB 2.0: Support for NTFS (3.1) and FAT32 file system (The Monarch HD will support writing to USB3 devices at USB2 speeds. Also, there is a very high variability in the performance capabilities of “thumb” drives (even USB3 versions). Many are optimized for “read” operations while the Monarch HD requires sustained “write” capabilities. For best results, Matrox recommends using powered USB drives. If small portable media is required, SD cards may be more suitable.)
• 1 x SD card Slot: Supports SD and SDHC cards
• Network Mapped Drive: Support for writing to shared folders in computers found on a network using Windows Share protocols (suitable for windows system) as well as NFS protocols (suitable for Mac and Linux systems).
• Matrox Command Center Web UI
• Status Page: Provides relevant operational information concerning Status of Monarch HD unit at that time including; Input video detection and resolution, State and configuration of Streaming operation, State and configuration of Recording operation, Error conditions, etc...
• Control Page: Recording and Streaming operations initiated here including Synchronized start/stop operations. Multiple Monarch devices can be synchronized in a Master/Slave topology to allow for synchronized record and streaming operations across multiple units via a single interface.
• Record Settings: Configuration of recording parameters set within this page. A number of presets are included which are selected based on post event use of the recorded Asset. If file is to be uploaded for VOD purposes, a YouTube preset may be selected. If content is to be edited for high quality production, a master quality preset may be preferable.
• Streaming Settings: Configuration of Streaming parameters performed on this page. The RTMP or RTSP credentials as well as encoding parameters are entered. While a preset cannot include the streaming credentials, encoder presets have been included to quickly select an ideal encoders settings based on desired delivery resolution or bitrate. The Monarch HD will have been tested with a number of CDN providers as well as feeding Wowza Media servers and Adobe Media Server platforms.
• Administrative tools: Device Naming, IP configuration, Date/Time settings and a variety of other tasks performed via this page
• Additional Tools: Matrox provide PC or Mac based utilities to help detect Monarch Device on a particular Network (DHCP server required)
• Physical
• Dimensions: 5.60 in. long (14.2 cm), 4.30 in. deep (10.9 cm) excluding inserted SD-CARD, 4.40 in. deep (11.2 cm) including inserted SD-CARD, 1.22 in. (3.1 cm) high including rubber feet
• Weight: 0.66 lbs. (300 grams) excluding power supply
• Operating conditions: 32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)
• Line Voltage: 100-240V AC, 0.5A
• Frequency: 50-60 Hz
• Input: External AC/DC adapter - IEC320-C14
• Output: +5VDC, 3A max
• Total power consumption: 15 Watts
• DIN4 Locking Power Connector
• Max Operating Altitude: 3000 meters
• Max Transport altitude: 12,000 meters
• Storage Humidity 5 to 95% relative humidity (non-condensing)
• FCC Class B, CE Mark Class B, ACMA C-Tick Mark, VCCI
• RoHS Directive 2002/95/EC
• Warranty: 2 years with free telephone support
