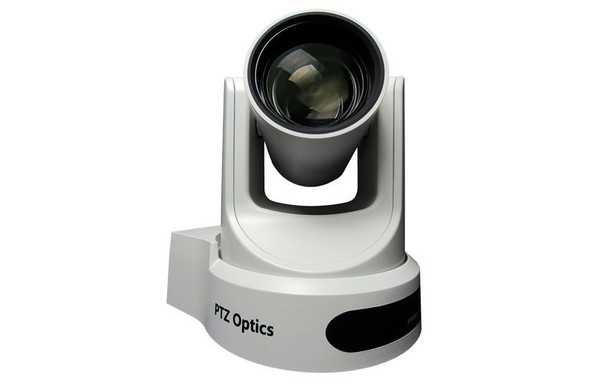

The PT30X-SDI-G2 from PTZOptics is a Generation 2 3G-SDI advanced live streaming series of cameras. Available in two colors, gray (PT30X-SDI-GY-G2) or white (PT20X-SDI-WH-G2) these models are of 1080p camera design with 20X optical zoom for capturing HD images at long distances. With support for 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.

PTZOptics PT30X-SDI-G2 Includes:

• 30X Zoom 3G-SDI Camera
• Power Adapter + Cord
• IR Remote Control
• RS-232C Cable
• User Manual

PTZOptics PT30X-SDI-G2 Features:

• 60.7 degree wide-angle lens.
• High performance in low light scenarios with Wide Dynamic Range.
• Full 1920x1080p HD Resolutions up to 60 frames per second.
• 2D and 3D noise reduction with PTZOptics latest “low noise CMOS sensor”.
• RS232 & RS485 (Serial), and IP (LAN/WAN) control
• H.264, H.265, & MJPEG streaming over RJ-45 LAN port
• HDMI, 3G-SDI, & IP streaming (all 3simultaneously)
• PoE (Power over Ethernet) or 12VDC
• RTMP, RTSP IP Streaming

PTZOptics PT30X-SDI-G2 Specifications:

• Model Number:
• PT30X-SDI-GY-G2 (gray)
• PT30X-NDI-WH-G2 (white)
• Camera & Lens:
• Video Sensor 1/2.7” CMOS, 2.07 Mega Pixels
• Frame Rates 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25
• Frame Rates (CVBS) 576i/30, 480i/30
• Focal Length: 30x, F4.42mm-132.6mm, F1.8-F2.8
• Lens: Zoom 30x
• Field of View 60.7°
• Min Lux: 0.5 Lux at F1.8, AGC ON
• Shutter Speed: 1/30s -1/10000s
• SNR: >/= 55dB
• Vertical Flip & Mirror: Supported
• Horizontal Angle of View: 2.28° (tele) to 60.7° (wide)
• Vertical Angle of View: 1.28° (tele) to 34.1°(wide) Physical
• Working Environment: Indoor
• Pan & Tilt Movement:
• Pan Movement: ±170°
• Tilt Rotation:
• Up: 90°
• Down: 30°
• Presets: 10 via IR (255 via Serial or IP)
• Rear Board:
• Video Output: HDMI, 3G-SDI, IP Streaming, CVBS
• Network Interface: RJ45
• Audio Interface: Line In, 3.5mm (HDMI & IP Stream Only)
• Communication: RS-232, RS485, PELCO-D/P, NDI
• Baud Rate: 2400/4800/9600 bits
• Power Supply: JEITA type Power Adapter (DC IN 12V)
• 3G-SDI Interface: BNC – 75 Ohm, Female
• USB 2.0 Interface: Future Use
• Electrical Index:
• Power Supply: 12W (Max)
• Input Voltage 12V DC (10.8 -13.0V DC) or PoE 802.3af
• Physical:
• Dimension (in.): 5.6 W x 6.5 H x 6.7 D (7.8 H max w/ Tilt)
• Dimensions (mm): 142 W x 164 H x 169 D (198 H max w/ Tilt)
• Box Dimensions: 9” x 9” x 10” (229mm x 254mm x 229mm)
• Camera Weight: 3.10 lbs. (1.41 kg)
• Boxed Weight: 5.4 lbs. (2.45 kg)
