Features at a Glance

• Dual cassette deck for playing, dubbing, or recording 1 or 2 cassettes
• USB output for archiving a cassette to an external digital recorder
• Microphone input with level control can be mixed with cassette 1 and total mix recorded to cassette 2; convenient for karaoke and announcements
• Headphone jack output with separate level control for audio verification or private monitoring
• "SPECIAL" playback mode that allows you to cue the next song on a tape by monitoring the sound with headphones while another tape is playing

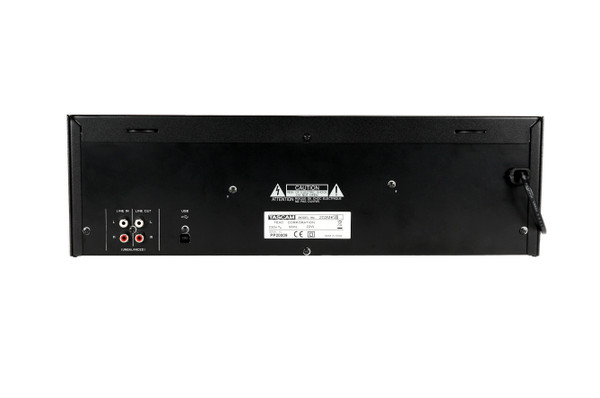

• RCA analog unbalanced outputs; stereo RCA input
• RTZ (Return to Zero) function that returns the tape to the zero count point
• Repeat playback function
• +/-12% pitch control function (TAPE 1 only)
• Parallel recording function for TAPE 1/2 that can reduce time for dubbing cassettes
• Supports recording and playback of normal tapes (Type I) and chrome tapes (Type II) - For metal tapes (Type IV), only playback is supported
• Dedicated wireless remote control
• Noise reduction function to reduce hiss during playback (equivalent to Dolby B NR)
• 3U rack mount design

  Track System4-track, 2-channel stereoHeads Construction

Record/playback head × 1 (each deck)
Erase head × 1 (each deck)

Tape Speed4.8 cm/sec
Pitch Control+/-12%Fast Winding Timeapproximately 120 sec (C-60 tape)Wow and Flutter0.25% (W.RMS)Frequency Response (Overall) High position tape (Type II)30 to 15k Hz (+/-4dB)Normal tape (Type I)30 to 13k Hz (+/-4dB)Signal to Noise Ratio (Overall)59dB (at maximum recording level input, A-Weight)ANALOG INPUT jacks ConnectorRCANominal input level-9dBu (0.28Vrms)Maximum input level+20dBu (7.75Vrms)Input impedance33kΩMIC INPUT jack Connector6.3mm(1/4")standard mono jack Maximum input level-66dBu (0.38mVrms)Input impedance3kΩ or moreANALOG OUTPUT jacks ConnectorRCANominal output level-4.5dBu(0.46Vrms)Output impedance1kΩPHONES ConnectorStandard 6.3mm (1/4") stereo jackMaximum output15mW + 15mW (into 32Ω load,)USB ConnectorUSB B-typeProtocolUSB2.0 FULL SPEEDSampling frequency8k/11.025k/16k/22.05k/32k/44.1k/48k HzQuantization bit rate8/16bitPower U.S.A./CanadaAC120V, 60HzU.K./EuropeAC240V, 50HzPower consumption14WDimensions482(W) × 138.3(H) × 285.8(D)mm (including protrusions)Weight5.4kgAccessoriesWireless remote control (RC-1331), AAA batteries × 2, A rack-mounting screw kit, Owner's manual (with warranty)

Supported OS'WindowsWindows 11 2023 Update (Version 23H2) , Windows 10 2022 Update (Version 22H2) , Windows 11 2022 Update (Version 22H2) , Windows 11 (Version 21H2) , Windows 10 (November 2021 Update) , Windows 10 (May 2021 Update) , Windows 10 (October 2020 Update) , Windows 10 (May 2020 Update)MacmacOS Sonoma , macOS Ventura , macOS Monterey , macOS Big Sur
