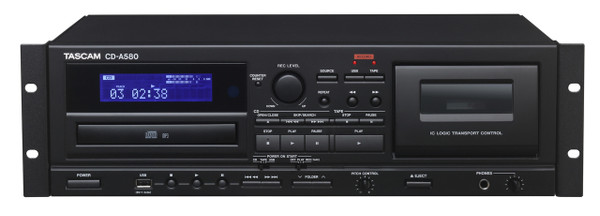

The CD-A580 from TASCAM is a Cassette/CD/USB Player recorder combo unit. The multi-purpose model features cassette and USB recording, allowing you the ability of taking your materials from cassettes to be archived to USB as MP3 files.

The CD-A580 combines a cassette deck, CD player and USB flash drive recorder/player into a single rack-mountable unit – perfect for installation and professional applications. A CD player and cassette tape recorder are joined with USB flash drive recording. Not only compatible the most popular types of media, the CD-A580 allows cassette tapes to be dubbed to USB media for archival.

TASCAM CD-A580 Includes:

• Wireless remote control (RC-1329)
• AAA batteries (x2)
• Rack mounting screw kit
• Owners manual & warranty card

TASCAM CD-A580 Features:

• Cassette deck:
  • One-way IC Logic transport control enables recording and playback
  • Dub from CDs
  • Dub from USB flash drive and recording from LINE Inputs
  • +/-10% pitch control
  • Supported cassette tape types:
    • Playback: normal (TYPE I), chrome (TYPE II), metal (TYPE IV)
    • Recording: normal (TYPE I), chrome (TYPE II)
    • Recommended tape length: 10 minutes to 90 minutes
• CD Player:
  • Playback of audio CDs, CD-RW discs and data CDs (MP3 files) supported
  • Various repeat playback modes, including Single, All and Program
• USB flash drive recorder/player:
  • Recording as MP3 files possible from CD, cassette and line input sources
  • MP3 file playback
  • Shuffle and program playback supported
  • Folder repeat playback
  • Manual file division (TAPE/LINE)
• General:
  • Headphone jack with level control
  • Infrared remote control included
  • LCD display with level meters
  • 3U rackmount size

TASCAM CD-A580 Specifications:

• Cassette Tape:
  • Track System: Stereo
  • Head Structure: Record/playback head x1, Erase head x1
  • Tape Type: Cassette Tape (C-10 – C-90)
  • Supported Cassette Tape:
  • Playback: Normal (TYPE I), Chrome (TYPE II), Metal (TYPE IV)
  • Recording: Normal (TYPE I), Chrome (TYPE II)
  • Pitch Control: ±10% (Playback Only
  • AUDIO PERFORMANCE:
    • Wow and Flutter: 0.3% (W.RMS)
    • Frequency Response:
      • 50 ~ 12.5kHz ±4dB (Chrome)
      • 50 ~ 12.5kHz ±4dB (Normal)
    • S/N Ratio: 59dB (Maximum input level, A-weighted)
    • IN/OUT:
      • Nominal Input and Output Level (RCA): 4.5dBu (0.46V) Impedence more than 50k ohms
• CD PLAYER:
  • Supported Disc: CD/CD-R/CD-RW (12cm/8cm)
  • Disc Format: CD-DA, MP3 data CD (ISO9660 Level 1/Level 2)
  • AUDIO PERFORMANCE:
    • Frequency Response: 20Hz ~ 20kHz ±2dB
    • THD+N: Less than 0.02% (1kHz)
    • Maximum Output Level: +6dBV (2.0V)
• USB RECORDER/PLAYER:
  • Playback Format: MP3
  • Sampling Frequency: 16k – 48kHz, 8k – 320kbps bit rates
  • Record Format: MP3
  • Sampling Frequency: 44.1kHz, 128kbps bit rates
  • Folder Levels: 8 levels supported
  • AUDIO PERFORMANCE:
    • Playback: 20Hz – 15kHz (±3dB), more than 85dB S/N
  • Record:
    • From CD: 20Hz – 15kHz (±3dB)
